An 8-channel live streaming mixer featuring two phantom power inputs for condenser mics, an integrated USB audio interface, voice changer and sampler.

• Two mic/line inputs and two headphone outputs can be used simultaneously

• +48 V phantom power on CH1 and 2 for condenser mics or Dl boxes

• Four FX preset buttons for CH1, Hi-Z input for guitars on CH2

• Three stereo inputs with assignable faders, switchable input source for LINE/USB

• 4-pole mini input/output (TRRS) on CH7/8

• MONITOR outputs (XLR + TRS) and MIX outputs (TRS)

• Six sound pads trigger audio samples in real time to add color to live streams

• Internal circuitry delivers highest sound-quality in the AG series

• 24-bit, 48 kHz Multi-channel audio recording and playback (Coexistence of ASIO and WDM)

• Flexible inputs and outputs ideal for live streaming

• DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer)

• AG08 Controller (Windows / Mac / iOS) for precise parameter control and detailed audio management

• 60 mm faders and Mute buttons for each input

• Foot switch functionality for more versatile system control

• Windows / Mac support via USB-C connection

• iOS connectivity via Apple Camera Adapter (requires external USB power supply)

• Android supported by 4-pole mini input/output (TRRS)

• USB-C power input (5 V DC, 1.5 A)

• Cubase Al, WaveLab Cast, Cubasis LE are available

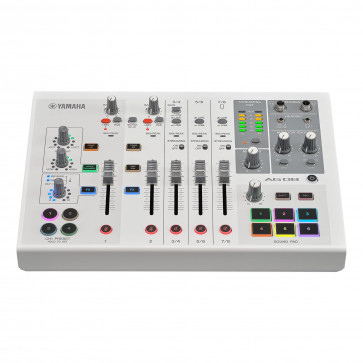

AG08. ALL-IN-ONE STREAMING STATION.

The flagship model of the second generation AG series is one of the most powerful streaming solutions on the market. More flexible I/O and USB routing options, additional DSP effects, extended functionality and improved internal circuitry - for an impressive depth of streaming applications. Packed with advanced features, yet flexible and easy to use.

Input for two condenser microphones with two headphone outputs

The AG08 is equipped with phantom power to support condenser microphones, which are favored by musicians and dialogue-based content creators for their exceptional sensitivity and fidelity.

You can also rotate left and right with the dedicated AG08 Controller app for any type of stereo mic, including ASMR mics. In addition, there are two independent headphone monitor channels for applications where two people are broadcasting a conversation or when someone other than the performers is managing the audio.

Three assignable faders for flexible USB I/O

Multiple applications on a USB-connected computer or analog line inputs can be individually assigned to the faders for channel 3/4, 5/6 or 7/8 of the AG08, allowing intuitive LINE/USB mixing of audio signals by physically controlling the faders. Conversely, the AG08's three mixed USB outputs can be individually assigned to different applications on your PC via the USB connection.

ASIO-enabled DAWs/applications allow simultaneous multi-channel recording (CH1, 2, 3/4, 5/6 and 7/8) even during live broadcasting.

FIVE DSP EFFECTS

The AG08 is equipped with high-quality effects to colorize, enhance or enhance vocal signals and musical instruments. All effects are processed by the built-in DSP*, so there is no lag or impact on computer processing.

CH1 includes a new voice changer effect that can transform your voice into a voice of the opposite sex, robot and more, while CH2 offers an amp simulator for a more authentic guitar or bass sound. These, along with Comp, EQ, Reverb and the newly added Delay, can be set independently on each channel, allowing you to always dial in the optimal settings.

The Ducker function automatically attenuates CH3/4, 5/6 and 7/8 audio output relative to CH1 and CH2 audio input, so you can easily set up a stream where CH1 and CH2 signals will always be heard clearly.

The Maximizer is a simple yet powerful mastering feature that can add level boosts to your mix for extra shine and professionalism as well as suppressing peak signals.

Four effect preset buttons for CH1

The four effect preset buttons in the lower left corner of the AG08 allow you to seamlessly switch between custom effect presets for CH1.

This gives users comprehensive real-time control to add just the right amount of effects - including a new voice changer - especially during live voice and music performances.

Six sound pads

The AG08 comes with 6 customizable sound pads to bring your broadcasts to life with ease.

With the "AG08 Controller" app, you can simply drag and drop audio files and assign them to a pad, or record your own samples using the AG08's inputs and trim them to the desired length in the app.

Powerful software bundled

The AG08 comes bundled with Cubase AI music production software as well as WaveLab Cast for audio production and editing.

The AG08 is also compatible with Cubasis LE for the iPad operating system to support and inspire audio content creation.

SPECIFICATIONS

• 8-channel (2x mono, 3x stereo) 24bit/48kHz USB-C

• Multiple USB inputs/outputs

• 5 DSP effects

• 6 sound pads/4 FX buttons Win/Mac/iPad OS 290 x 88 x 222 mm (W x H x D) 2.2 kg
