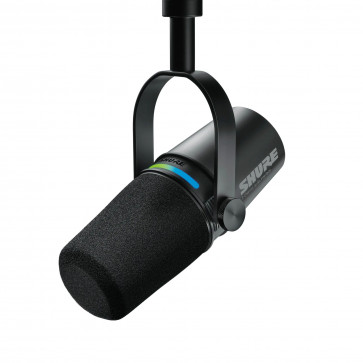

SHURE MV7i - Intelligent Speech/Vocal Microphone with Built-In Audio Interface

The MV7i is Shure’s latest microphone that redefines the standards of sound recording. It is the first microphone with a built-in audio interface, offering users unprecedented capabilities while simplifying the entire content creation process. Whether you are a podcaster, musician, or streamer, the MV7i delivers exceptional sound quality and flexibility that lets you focus on your creativity.

Connect any XLR microphone or instrument via the combo XLR/TRS connector and you will never need an audio interface in your signal chain again. Conveniently manage your recordings using MOTIV applications. Enjoy broadcast-quality sound along with advanced DSP features. The elegant, fully metal chassis with an adjustable mounting bracket is ideal for creators looking for simple solutions and professional-grade performance.

Details:

• Smart Auto Level with SmartGate™: Dynamically adjusts the microphone sensitivity based on the distance to the sound source, speaking volume, and room acoustics, ensuring clear, uninterrupted recordings.
• Versatile Connectivity: Connect a dynamic or condenser microphone using the XLR, ¼" TS, or TRS connector. Enjoy 24-bit digital sound at 48 kHz, built-in DSP processing capabilities, up to +60 dB gain, and 48 V phantom power.
• Compatibility: Works with Mac, Windows, Apple, and Android™ devices via USB-C. MFi certified for iPhone and iPad devices.
• Shure Voice Isolation Solution and Advanced DSP Features: Significantly enhances the signal of the built-in microphone as well as any connected XLR microphone, providing broadcast-quality sound with Voice Isolation technology and features such as Real-Time Denoiser, Digital Popper Stopper™, and adjustable reverb.
• Customizable LED Touch Panel: The 36-bit LED touch panel with color adjustment can be personalized using the MOTIV Mix app and displays information such as the current signal level meter, pulsing, or solid modes. The screen can be configured to show the status of both the microphone and the input channel in split or combined mode.
• Instant Mute: Instantly mute each channel with a touch of the LED panel featuring a red mute animation.
• Real-Time Monitoring: Monitor the microphone and input channel audio in real time via the available 3.5 mm jack.
• Flexible Recording Modes: Available Mixdown mode, which by default combines the sound into a single mono track, Multi-track mode offering two separate mono tracks, and Stereo mode which preserves the stereo input with additional microphone signal routing.
• Tailored Sound and Effortless Mic-ing: Configure DSP functions, create your own sound signature, and seamlessly blend audio from two channels using the MOTIV Mix™ and MOTIV Mobile apps.
• Built-In Audio Interface in the MV7i: Simplifies the sound signal path while extending the content creation suite’s capabilities with effortless dual-channel recording on computers, tablets, or smartphones.

Compatibility

• The MV7i is compatible with the MOTIV Mix™ desktop app on Windows 10 or later and Mac OS 12 or later, requiring a minimum of 8 GB RAM and 20% or more free disk space.
• The MV7i works with the MOTIV Audio and Video apps on iOS 16 or later and Android OS 12 or later.

Technical Specifications

Microphone:

• Transducer Type: Dynamic
• Polar Pattern: Cardioid
• Frequency Response: 50 Hz - 16 kHz
• Gain Control: 0 to +36 dB
• Sensitivity: -33 dBV/Pa
• Max SPL: 128 dB SPL

Input Signal

• Input Connector: Combo XLR, 1/4" (6.3mm) TS/TRS
• Input Impedance: 5.8 kΩ (XLR), 1 mΩ (TRS)
• Gain Control: 0 to +60 dB (mixdown, multitrack), 0 to +40 dB (stereo)
• Max Input Level: -14 dBV (XLR), 7 dBV (TRS)
• Phantom Power: Yes (+48 V DC)

Other

• Digital Signal: 24-bit, 48 kHz (and 16-bit, 44.1 kHz for iOS)
• Headphone Output: Yes, 3.5 mm mini jack
• Signal Outputs: USB-C
• Power: USB-C
• Mount Type: 5/8" thread
• Built-In DSP: Auto Level Mode, Digital "Popper Stopper", Real-Time Denoiser, Tone Shaping, Reverb, Compressor, Limiter, High-Pass Filter
• Compatible Software: MOTIV Mix Desktop App (desktop), Shure MOTIV Audio & Video Apps (mobile)
• Chassis: Die-cast aluminum
• Dimensions: Length 169 mm, Width 90 mm, Height (with 90° angled stand) 164 mm
• Weight: 567 g

What's in the Box

• Shure MV7i Microphone
• 3-meter USB-C to USB-C Cable
• Quick Start Guide
