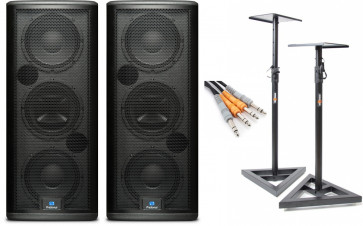

PRESONUS SL 328 AI - Pair of monitors + tripods + signal cables
PRESONUS SL 328 AI – Pair of monitors + tripods + signal cables Active three-way broadband loudspeaker technology Active Integration transmitter LF 2 x 8 '' ferrite, MF 8 '' CoActual, HF 1.75 '', DSP 24-bit / 96kHz, public Wi-Fi and LAN StudioLive Dante [option] power 2000W [1000W / 500W / 500W], the frequency response of 54Hz - 23kHz, 133dB SPL, input Combo [XLR / TRS] and microphone XLR, XLR output, dimensions in mm [height. 764.54 / depth. 398.78 / width. 337.82], the weight of 23.13kg, M10 rigging points, cover [option]
The kit contains
|
PRESONUS SL 328 AI - Active three-way column (2 pcs.) |
EUR1,672.13
|
|
Statyw pod monitory (para) (1 pcs.) |
EUR74.81
|
|
KABLE POŁĄCZENIOWE 2xTRS i 2xTRS (1 pcs.) |
EUR18.53
|
|
By purchasing in a set you save
|
EUR35.41
|
Limited availability
Ask for price
Product attributes
Model :
SL 328 AI,Statyw pod monitory (para),KABLE POŁĄCZENIOWE 2xTRS i 2xTRS
SKU :
SUP_27910Z
Warranty :
2 years
Manufacturer :
PreSonus
Parameters of the products in the set
Product Description
Details
PRESONUS SL 328 AI – Pair of monitors + tripods + signal cables
StudioLive® 328AI Active Integration loudspeakers deliver studio-monitor accuracy onstage with unprecedented onboard processing and networking features in a compact form factor. PreSonus Active Integration technology enables wireless and wired networking control for setup, tuning, and monitoring functions, using an iPad®, a Mac® or Windows® laptop, or both. The StudioLive 328AI provides the best imaging and intelligibility in its class, making it an ideal choice for installations and mobile applications where high fidelity matters.
Three-way coverage with power to spare.
A compact, full-range system that provides amazing clarity and fidelity, the StudioLive 328AI delivers 3-way coverage, with dual 8-inch low-frequency drivers covering the same range to deliver surprising low end and our proprietary 8-inch, CoActual® coaxial speaker for mid- and high-frequency reproduction. Each transducer is driven its own 500W Class D amp for a hefty 2,000W RMS of quad-amplified power, all housed in a compact enclosure. The 328AI is time- and phase-aligned to form a true 4-way system when paired with the StudioLive 18sAI subwoofer, with or without the highpass filter engaged, to provide an optional overlap at 100 Hz for applications that require a little more low-end punch.
The CoActual difference.
PreSonus’ proprietary CoActual® 8-inch, horn-loaded coaxial speaker offers a consistent acoustic center and is responsible for high- and mid-frequency reproduction. The single point source provided by this coaxial design offers unique advantages, thanks to the driver’s symmetrical response. The net result is exceptional 3D imaging and a natural listening experience that reveals the subtlest details.
Networkable with Wi-Fi, Ethernet, or Dante.
The StudioLive 328AI comes equipped for wireless and wired communications over an Ethernet or Wi-Fi local area network for monitoring and control over custom tuning settings. Better yet, add the SL-Dante-SPK option card to create a Dante™ network and ditch your analog cables in favor of lightweight CAT5e or CAT6 cables.
You’re in control—here, there, and everywhere.
The StudioLive 328AI features a robust onboard loudspeaker processor that can be accessed and controlled over a standard LAN network. PreSonus’ SL Room Control app for iPad, Mac, and Windows provides rich, easy-to-use system configuration and individual and group control over any StudioLive AI loudspeaker on the network, including alignment delay, parametric EQ, notch filters, group level, and graphic EQ, as well as performance monitoring. SL Room Control makes customizing your speaker system as simple as connecting an Ethernet cable to a wireless router.
Flexible connections and mounting capabilities.
The rear of the StudioLive 328AI reveals a combo XLR/TRS line input and an XLR microphone input with an XMAX Class A mic preamplifier and 12V phantom power, as well as an XLR mix output. In addition to the input mixer, you get speaker level-attenuation control. The lightweight plywood enclosure has two ergonomic side handles, interlocking stacking, and M10 fly points. Dual-position pole mounts allow you to mount the speaker atop a stand or subwoofer at 90 degrees or at a 10-degree downward tilt.
Special models for flown installs.
Available in white and in black, the StudioLive 328i-W and 328i-B are special versions of the 328AI designed for flown indoor installs. As such, they do not have handles and pole mounts, and internal grille cloth masks the drivers so that they blend seamlessly into their environments. A companion yoke mount is also available. In all other respects the new StudioLive 328i-W and 328i-B are identical to the StudioLive 328AI.
Clear, accurate, powerful—and available now.
Whether out on tour or installed in a venue, StudioLive 328AI loudspeakers deliver studio-monitor accuracy at incredibly high SPL, with amazing imaging and intelligibility. With extensive software control and wired and wireless networking, it offers advanced capabilities that go well beyond conventional point-source loudspeakers, yet it’s easy to set up and use. Because of its compact size, we’ve found it easy to transport and set up the 328AI in places where access is difficult but its amazing fidelity is what sets it apart. Check out the StudioLive 328AI at your favorite PreSonus® dealer.
Technical Specifications
Acoustic Performance
Configuration 3-way, quad-amplified loudspeaker system
Frequency Response (-10 dB) 54 Hz to 23 kHz
Frequency Response (-6 dB) 59 Hz to 22 kHz
Nominal Coverage (-6 dB) 90° x 60°
Maximum Peak SPL 133 dB
Crossover Frequency 1.7 kHz
Directivity Index (DI) 10 dB, >460 Hz
Directivity Factor (Q) 10.0, >460 Hz
Transducer
LF Transducer 2x8" Ferrite
MF Transducer 8" CoActual™
HF Transducer 1.75" compression driver
Amplifier
Type Class D
Total Power Output 2,000W (total power without protection algorithms and limiter enabled)
LF Power 2 x 500W
MF Power 500W
HF Power 500W
Rated THD <0.05% (20 Hz - 20 kHz)
Dynamic Range 119 dB (A-weighted)
Bandwidth 20 Hz - 20 kHz
Cooling Free air convection
Connections and Controls
Input Channels 1 mic, 1 line
Input Connector Types 1 XLR (F), 1 combo
Phantom Power 15 VDC (Ch. 1 only)
Mic Input Impedance 1 kΩ
Line Input Impedance 10 kΩ
Maximum Input +22 dBu
Output Connector 1 XLR (M) - Mix out
Controls Mic Level (Variable: Off to +48 dB), Line Attenuation (Variable: -24 dB to 0 dB), Speaker Attenuation (Variable: -24 dB to 0 dB)
Indicators DSP Preset, HPF On/Off, Network Connected, Network Activity, Wi-Fi Setup, Wi-Fi On, Signal, Limit, Clip, Thermal
DSP
Contour Presets Normal, LBR Source, Floor Monitor
HPF 100 Hz, 4th-order Linkwitz-Riley
Bit Depth 24-bit
Sample Rate 96 kHz
Enclosure
Material 15 mm Baltic birch
Finish Chemline™ polyurethane
Grille Powder-coated steel
Dimensions (HxDxW) 30.1" x 15.7" x 13.3"
(764.54 x 398.78 x 337.82 mm)
Unit Weight 51 lbs (23.13 kg)
Handles One on each side
Monitor Angle 50°
Safety
Amplifier Protection Over-current, DC, over/under-voltage, over-temperature, high frequency
Transducer Protection 4-ch. multi-threat limiter
Power
AC Power Input 100-230V~, 50-60 Hz
AC Power Consumption (1/8 Power) 250W
Suspension Mounting
Rigging Points 12 M10
Mounting 35 mm, 2-position
Price per pair of monitors, tripods and signal cables !!
