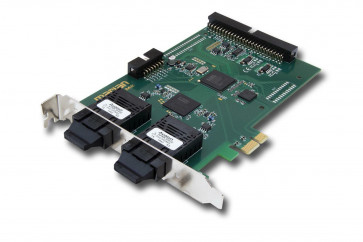

Marian Audio Seraph M2 – The World's First 384 kHz MADI PCIe Audio Interface

The Marian Audio Seraph M2 is a state-of-the-art PCIe audio interface, delivering unparalleled 24-bit/384 kHz resolution and supporting up to 256 MADI channels. Designed for professional audio applications, the Seraph M2 offers exceptional sound quality, stable synchronization, and low latency, making it the ideal choice for demanding studio and live environments.

Supports up to 256 Audio Channels – Maximum Versatility in the MADI Format

The Seraph M2 provides two MADI inputs and outputs, supporting up to 256 channels at a sampling rate of up to 48 kHz. This interface enables the transmission of vast numbers of audio signals through a single connection, eliminating the need for complex hardware configurations. At higher sampling rates, such as 384 kHz, the interface transmits 32 channels at the highest quality.

Advanced Synchronization Capabilities and MIDI via MADI

With the optional MWX extender, the Seraph M2 adds even more flexibility, offering a Wordclock output as well as two MIDI inputs and outputs. MIDI signals can be embedded within the MADI signal and transmitted over long distances without interference, ideal for large studio and stage installations.

Real-Time Routing and Signal Control

The integrated DSP mixer allows for latency-free routing of up to 128 input signals to various outputs and precise control of their respective volumes. The user-friendly interface makes it easy to manage signals in real-time, ensuring full control over your sound.

Key Features:

• Supports up to 256 MADI Channels: Ideal for large audio installations.
• Wordclock Support: Precise synchronization with external digital devices.
• MIDI via MADI: Transmit MIDI signals over long distances.
• Low Latency: Optimized for PCIe with low latency.
• Expansion Options: MWX version with additional MIDI I/O and Wordclock.

Technical Specifications:

• Interface Type: PCIe Audio Interface (1 Lane, PCIe 1x)
• Channels: 2x MADI (BNC or SC), supports up to 256 channels at 48 kHz
• Sample Rates: 44.1 kHz to 384 kHz
• Sync Source: Wordclock (MWX version only)
• Digital Inputs: 2x MADI (BNC or SC), up to 128 channels at 48 kHz
• Digital Outputs: 2x MADI (BNC or SC), up to 128 channels at 48 kHz
• Drivers: Compatible with Windows, ASIO support

The Seraph M2 is a versatile PCIe interface offering exceptional audio quality and advanced synchronization capabilities, meeting the needs of even the most demanding professionals.
