Electro-Voice Tx1122 - 12" passive loudspeaker
Electro-Voice TX1122 is a professional loudspeaker with a compact design, featuring a frequency range of 45 Hz – 20 kHz and a maximum SPL of 130 dB. Ideal for live performances and fixed installations.
Limited availability
30 days refund policy
Safe shopping
Warranty
Ask for price
Product attributes
Model :
Tx1122
SKU :
SUP_em4649
Warranty :
2 years
Manufacturer :
Electro-Voice
Weight without package:
20.2 kg
Bluetooth :
NO
XLR Input :
YES
Power Amp :
500 W
HF Driver Size :
1.25"
LF Driver Size :
12"
Color :
Czarny
Powered :
pasive
Power configuration :
basowy: klasa D
Effects :
DSP
Horizontal Coverage Angle: :
90
Vertical coverage angle :
50
Enclosure material :
sklejka 15mm
Mounting options :
Boczne uchwyty do przenoszenia, Fly Points, Pole mount with 35mm
Frequency response From (Hz) :
45
Frequency response to (Hz) :
20000
Product Description
Details

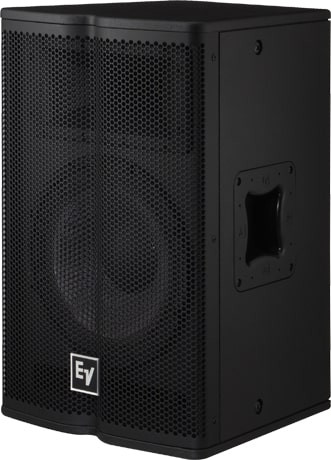

Electro-Voice TX1122 - Compact Professional Loudspeaker
The Electro-Voice TX1122 is a compact, passive loudspeaker designed for professional sound reinforcement applications. With a robust construction and advanced components, the TX1122 is perfect for both fixed installations and portable sound systems.
Product Features
High-quality sound, maximum SPL of 130 dB, a constant directivity horn (90° x 50°), low distortion with SMX2120 technology, and a durable EVCoat-coated enclosure are the key highlights of this speaker.
Advanced Technology for Professionals
The built-in 4th-order crossover with HF protection ensures exceptional sound quality and safeguards the components. Its design allows for versatile mounting options, including suspension and stand mounting.
Product Applications
The TX1122 is ideal for live performances, clubs, places of worship, and events requiring clear sound and robust construction.
Technical Specifications
- Frequency Response (-3 dB): 60 Hz – 20 kHz
- Frequency Response (-10 dB): 45 Hz – 20 kHz
- Sensitivity: 97 dB (1W/1m)
- Continuous/Peak Power: 500 W / 2000 W
- Nominal Impedance: 8 Ω
- Coverage Pattern: 90° x 50°
- Crossover Frequency: 1.75 kHz
- Dimensions: 618 x 382 x 380 mm
- Weight: 20.2 kg
Materials and Construction
The enclosure, made of a plywood and MDF blend, is coated with a durable EVCoat finish, providing exceptional durability and resistance to damage.
Included in the Box
Electro-Voice TX1122 loudspeaker, user documentation.
Summary
The Electro-Voice TX1122 is the perfect choice for professionals seeking high-quality sound, reliability, and durability. It’s an excellent solution for both fixed installations and portable sound systems.
Shipment
Product delivery details Electro-Voice Tx1122 - 12" passive loudspeaker
Shipment from Warsaw, Poland.
Delivery to
If you wish to see more accurate shipping methods available in your location, fill the fields above.
Ask question
Ask question about product
Product faq
Electro-Voice Tx1122 - 12" passive loudspeaker - Frequently asked questions.
What is the power of the Electro-Voice TX1122?
The Electro-Voice TX1122 has a continuous power of 500 W and a peak power of 2000 W.
What are the dimensions of the speaker?
The dimensions are 618 x 382 x 380 mm.
What is the sensitivity of this speaker?
The sensitivity is 97 dB (1W/1m).
What is the primary application of the TX1122?
The TX1122 is perfect for live concerts, clubs, and places of worship.
What is the impedance of the speaker?
The impedance is 8 Ω.
What type of enclosure does the TX1122 have?
The enclosure is trapezoidal, made of plywood and MDF, coated with EVCoat.
What accessories are included in the box?
The speaker and user documentation are included.
Can the TX1122 be suspended?
Yes, the speaker has six M10 mounting points.
What is the crossover frequency?
The crossover frequency is 1.75 kHz.
What is the maximum SPL?
The TX1122 achieves a maximum sound pressure level of 130 dB SPL.
