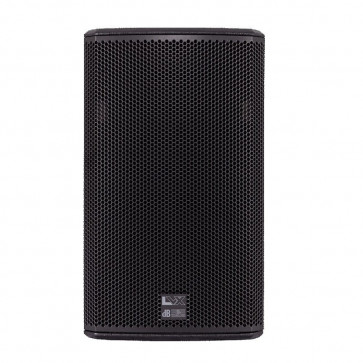

dBTechnologies LVX-12 - active loudspeaker

Be the first to review this product

dBTechnologies LVX-12 - active loudspeaker



Product available: 5 pcs

Main warehouse

Stationary shop

Buy now and we will send the product today

Place order within

30 days refund policy
Safe shopping
Warranty
EUR711.75
Manufacturer: dB Technologies
i

Free delivery on orders over 250 EUR Read more...

i

Door to door warranty

i

Return purchased items within 30 days and get all your money back.

i

Documents in electronic form

Product attributes
Model : LVX-12
SKU : SUP_as470
Warranty : 2 years
Manufacturer : dB Technologies
Bluetooth : NO
Power Amp : 1600 W
LF Driver Size : 12"
Color : Czarny
Powered : active
Power configuration : basowy: klasa D
Effects : high-pass filter , limiter, Low-pass filter
Enclosure material : 18mm plywood
Mounting options : Boczne uchwyty do przenoszenia, Pole mount with 35mm
Frequency response From (Hz) : 55
Frequency response to (Hz) : 20000
Product Description
Details

LVX active loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish, portable, powerful. As a result of the experience in touring gear designing, the new LVX series offers smart solutions with a special attention to the needs of fixed and portable installations.

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance.  The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO® series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.

The enclosure is made of robust 12mm plywood with a look very elegant and refined.

 LVX 12 is provided with a top handle and 2 side handles to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods

Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.

All models and related accessories are available in black or withe finshes.

The white installation version of all the four models comes without the pole mount cup and the handles, providing a very transparent look

Technical Data

  • Speaker Type   2-Way Active Speaker
Acoustical data
  • Frequency Response [-10dB]   55 - 20.000 Hz
  • Frequency Response [-6dB]     62 - 19.000 Hz
  • Max SPL    127 dB
  • HF    1"
  • Directivity     90 x 40°
  • Horn   Rotatable CD Horn
  • LF   12"
Amplifier
  • Amp Technology     Digipro® G2
  • Amp Class      Class-D
  • Peak Power   1600 W
  • PRG Power    800 W
Processor
  • Controller          DSP 24bit/48kHz
  • System Presets    Flat, Processed
Limiter
  • Dual Active Peak, RMS, Thermal
  • Crossover Frequency LF-HF    1800 Hz
  • Slope LF-HF    24 dB/Octave
Mechanics
  • Housing     Multiplex
  • Angles Up     Monitor use 45°
  • Handles     3 (1x top side, 1x side)
  • Rigging points    12 x M10
  • Pole Mount       D36 mm
  • Width     360 mm (14.17 in)
  • Height    610 mm (24 in)
  • Depth     360 mm (14.17 in)
  • Weight   17 kg (37.5 lbs)
