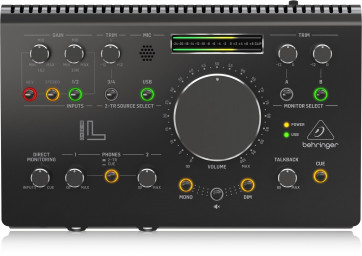

Behringer STUDIO L - High-End Studio Control and Communication Center with Midas Preamps, 192 kHz 2x2 USB Audio Interface and VCA Stereo Tracking
Behringer STUDIO L - High-End Studio Control and Communication Center with Midas Preamps, 192 kHz 2x2 USB Audio Interface and VCA Stereo Tracking
Product available: 5 pcs
Main warehouse
Stationary shop
Buy now and we will send the product today
Place order within
best price
30 days refund policy
Safe shopping
Warranty
Free InPost return
EUR142.68
Product attributes
Model :
STUDIO L
SKU :
SUP_em4216
Warranty :
2 years
Manufacturer :
BEHRINGER
Product Description
Details
- Premium, ultra-low noise and high headroom studio control and communication center
- All-in-one master volume controller, source selector, monitor switcher and talkback box
- 2 state-of-the-art, Midas mic preamplifiers with +48 V phantom power
- Audiophile 192 kHz 2x2 USB audio interface, perfect for computer-based studios
- True VCA control for extremely precise level control and stereo tracking
- 4 inputs with level controls plus additional USB monitoring from your DAW
- 2 independent and adjustable monitor outputs to connect up to 2 sets of studio monitors
- Versatile talkback section with built-in microphone and level control
- Convenient mono, mute and dim functions right at your fingertips
- 2 powerful headphone amplifiers with separate volume controls and source select switch
- Zero-latency direct monitoring with controlled blending between direct inputs and cue mix sources
- Quick-access aux input to connect your smartphone and music player for reference tracks
- High-precision dual LED meters for perfect level overview
SPECIFICATIONS
Inputs
- Inputs 4
- Preamps 2 x Midas designed
- Type 2 x XLR / TRS combo connector (mic/line)
- Impedance Mic: 3 kΩ / Line: 1 MΩ
Line inputs
- 2 x 1/4" TRS, balanced or unbalanced, +4/-10 dB
- 1 x 1/8" TRS stereo (input 3/4)
- Maximum input level +22 dBu
Outputs
- Outputs 3 stereo
- Line outputs 6 x 1/4" TRS, balanced or unbalanced
- Headphone outputs 2 x 1/4" TRS stereo
- Maximum output level +22 dBu
USB
- Type Class compliant USB 2.0, type B
- Supported operating systems Windows 10/ Mac OS X 10.14 or higher
- Audio 2 in / 2 out
- Converter resolution 24-bit
- Supported sample rate 44.1, 48, 88.2, 96, 192 kHz
Talkback Section
- Output level -∞ to +10 dB
- Talback level -∞ to max
- Takback destination cue
Controls
- Phantom power +48 V (inputs 1/2)
- Volume High-precision stereo tracking VCA volume control 0 - 100%
- Playback controls Mono, Mute, Dim
- Monitor select A, B
- Input 1/2 48 V on/off, Stereo on/off, 1/2 (channel select) on/off
- Input 3/4 -12 to +12 dB Trim, 3/4 (channel select) on/off
- USB input USB (channel select) on/off
- Muted -60 dB
- Dim -20 dB
- Direct monitoring Inputs to Cue blend
- Phones 1/2 Level control -∞ to max, common source select
System
- Frequency response 20 Hz to 20 kHz (±0.5 dB)
- Signal-to-noise ratio <-90 dBu RMS, un-weighted
- Distortion (THD+N) <0.01% @ 1 kHz, unity gain, 4 dBu input
- Crosstalk <-60dB @ 1 kHz, unity gain, 4 dBu input
Power Requirements
- Mains voltage 100-240 V, 50/60 Hz
- Power supply 12 V DC 2000 mA
- Power consumption 18 W max
Physical
- Standard operating temperature range 5° C – 45° C (41° F – 113° F)
- Dimensions (H x W x D) 80 x 252 x 163 mm (3.15 x 9.92 x 6.42")
- Weight 1.5 kg (3.53 lbs)
