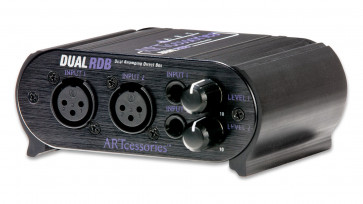

ART Dual RDB - 2-channel Reamping Box, DI-Box
ART Dual RDB is the ideal solution for applications where you need to connect a stereo or dual mono line-level signal to recording interfaces, computers, mixers, iPods, or consumer audio devices with XLR microphone or ¼" instrument inputs.
Product available: 4 pcs
Main warehouse
Stationary shop
30 days refund policy
Safe shopping
Warranty
Free InPost return
EUR94.90
Product attributes
Model :
Dual RDB
SKU :
SUP_IJ138
Warranty :
2 years
Manufacturer :
ART
Product Description
Details
Reamping from interface to various amplifiers
Stereo/dual DI-Box
Adjustable attenuator for microphone and instrument inputs
Stereo Audio/Video interface for low-level inputs
Frequency response: 20 Hz - 20 kHz, ± 0.5 dB @ +4 dBu
THD: 0.01% @ 1kHz, +18 dBu, <0.05% @ 100Hz, +18dBu
Channel separation: > 80 dB (typical)
Input connectors: 1/4" TRS balanced, XLR female balanced
Output connectors: 1/4" TRS balanced, XLR male balanced
Attenuation: -20dB at 100kΩ load, -25dB at 600Ω load
Dimensions: 47mm x 117mm x 99mm
Weight: 0.40 kg
ART Dual RDB
The Dual RDB is the ideal solution for applications where you need to connect a stereo or dual mono line-level signal to recording interfaces, computers, mixers, iPods, or consumer audio devices with XLR microphone or ¼" instrument inputs.
The Dual RDB features two high-quality isolation transformers that prevent ground loop issues when connecting different devices together.
The Dual RDB has ¼" TRS and XLR line-level inputs, and mic-level and instrument-level outputs.
The volume control on the Dual RDB allows for adjustment at the device itself, rather than in the studio, AV room, or enclosed rack cabinet. The frequency response of 20Hz to 20kHz allows for transparent transmission of signals from any high-quality audio source.
DI-Boxes are devices used in pro-audio systems, primarily for signal balancing. Thanks to balancing, the signal becomes up to 90% more resistant to interference, allowing it to be transmitted over long distances. But that's not all. Another very useful function is the separation of input and output signals. In practice, this helps prevent the formation of ground loops.
These small devices, long used by professionals, are gaining increasing popularity and interest among those just starting their journey in music, whether on stage or in the studio.
Applications
Specifications
Shipment
Product delivery details ART Dual RDB - 2-channel Reamping Box, DI-Box
Shipment from Warsaw, Poland.
Delivery to
If you wish to see more accurate shipping methods available in your location, fill the fields above.
Ask question
Ask question about product
Product faq
ART Dual RDB - 2-channel Reamping Box, DI-Box - Frequently asked questions.
What features does the ART Dual RDB offer?
The ART Dual RDB is a two-channel reamping box and DI box in one. It allows you to send a previously recorded audio track back to a guitar amplifier or other gear for re-recording. Each channel features signal level control and a Ground Lift switch.
What is the purpose of the Ground Lift switch on the ART Dual RDB?
The Ground Lift switch on the ART Dual RDB helps eliminate hum and other noise caused by ground loops, improving signal quality.
Does the ART Dual RDB support both line and instrument signals?
Yes, the ART Dual RDB supports both line and instrument signals, making it versatile for a wide range of applications, both in the studio and on stage.
What audio outputs does the ART Dual RDB have?
The ART Dual RDB has low-impedance XLR outputs and 1/4" TRS outputs, allowing flexible connection to various audio devices.
Does the ART Dual RDB require external power?
No, the ART Dual RDB is a passive device and does not require external power, making it convenient to use in various situations.
What is the reamping function in the ART Dual RDB used for?
The reamping function in the ART Dual RDB allows you to reprocess previously recorded tracks by sending them to amplifiers or other effects, enabling creative sound manipulation.
Is the ART Dual RDB suitable for live use?
Yes, the ART Dual RDB is designed for durability and versatility, making it an ideal tool for both studio and live use.
