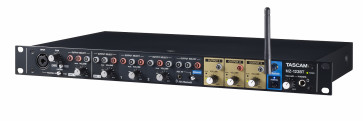

Tascam MZ-123BT: Modern Analog Mixer for Multi-Zone Audio Installations
The Tascam MZ-123BT represents the pinnacle of engineering achievement in audio mixing, serving as the perfect solution for complex installations requiring reliable sound management across multiple zones. This compact analog mixer, housed in a 1U rack unit, not only offers traditional mixing functions but also modern features such as Bluetooth audio streaming and intuitive control. Designed for flexibility, the MZ-123BT facilitates efficient distribution of background music and announcements across up to three different zones, meeting the needs of a wide range of venues from retail stores to restaurants and conference rooms.
Equipped with an intuitive layout, two versatile microphone inputs, and automatic music attenuation, the MZ-123BT ensures excellent speech intelligibility, crucial for announcements and presentations. Its robust construction and thoughtful features make it not just practical but also a technologically advanced audio hub, providing high-quality sound and reliability essential for modern audio installations.
Product Features
The MZ-123BT offers comprehensive routing, mixing, and audio distribution to three channels. With two microphone inputs and automatic background music attenuation, it ensures excellent announcement clarity. Its three zone outputs allow for the direction of music and messages to selected areas.
Applications
Ideal for commercial applications where independent audio routing and announcement capabilities are required, such as conference halls, hotel lobbies, retail and entertainment spaces.
Technical Specifications
- Audio Inputs:
- Two microphone/line Euroblock inputs with phantom power (+48V) and talkover.
- Three stereo inputs: two unbalanced RCA and one Aux/Bluetooth with buttons for directing the signal to zones.
- Audio Outputs:
- Three balanced Euroblock output pairs settable to mono or stereo, dedicated to three zones.
- Sound Control:
- 3-band equalizer (Low, Mid, High) and Gain knob for each input.
- High-pass filter for optimizing microphone sound.
- Talkover function for clear voice announcements.
- Connectivity:
- Bluetooth with an external antenna for stable audio streaming.
- Physical:
- Compact 1U rack size, ideal for integrated audio installations.
- USB port on the front panel for software updates.
Materials and Construction
Housed in a 1U rack, the MZ-123BT offers a durable structure perfect for professional installations.
Included in the Package
MZ-123BT mixer, power cable, 8 Euroblock connectors, rack mounting screw set, user manual, Bluetooth antenna.
Summary
The Tascam MZ-123BT is an advanced yet user-friendly analog mixer designed for professional audio installations, supporting up to three zones. It offers exceptional flexibility with two microphone/line inputs, three stereo inputs, and three zone outputs. Each input features a dedicated 3-band equalizer, Gain control, and high-pass filter, allowing for precise sound settings. The Talkover function automatically lowers background music during announcements, ensuring clear messages. With its external Bluetooth antenna, the mixer provides solid and reliable wireless connectivity, perfect for streaming from mobile devices. Its compact 1U form makes it ideal for all types of fixed installations, offering both performance and ease of use.
