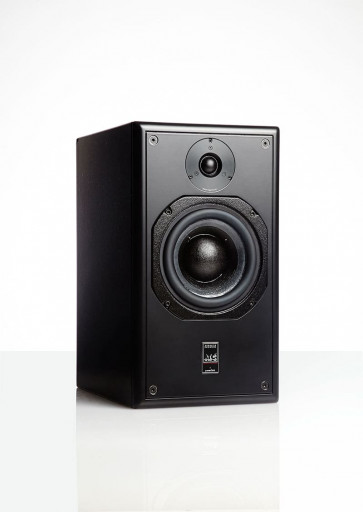

ATC SCM20ASL Pro Mk2 - studio monitor
The ATC SCM20ASL Pro Mk2 is a compact, 2-way studio monitor providing exceptional sound precision. Perfect for professionals, it delivers reliability and excellent sound in any control room.
Product available: 7 pcs
Main warehouse
Stationary shop
30 days refund policy
Safe shopping
Warranty
EUR3,259.29
Product attributes
Model :
SCM20ASL Pro Mk2
SKU :
SUP_nj131253
Warranty :
2 years
Manufacturer :
ATC
Weight without package:
23.4 kg
Type :
Active
LF Driver Size :
6"
Power Amp :
250 W
XLR Input :
YES
Bluetooth :
NO
Color :
Czarny
Frequency response From (Hz) :
25000
Frequency response to (Hz) :
55
Product Description
Details
ATC Loudspeakers SCM20ASL Pro Mk2
Discover Unmatched Sound Quality with the ATC SCM20ASL Pro Mk2
The ATC SCM20ASL Pro Mk2 is a compact, high-quality 2-way studio monitor that offers exceptional sound precision. Designed for professionals, it is perfect for any control room, providing reliability and excellent sound.
Key Features That Will Impress You
Perfection in Every Detail
The ATC SCM20ASL Pro Mk2 stands out with advanced technology that delivers crystal-clear sound. The patented Mid/Bass driver 150mm/6” CLD and the tweeter with dual suspension 25mm/1” ensure remarkable sound quality. The monitor features a discrete MOSFET amplifier class A/B bi-amp with a continuous output power of 200W/50W, making it an ideal choice for small and medium-sized control rooms as well as for surround channels in immersive sound systems.
Versatile Applications
The ATC SCM20ASL Pro Mk2 is ideal for:
- Nearfield Monitors: Perfect for any control room.
- LCR Monitoring: Ideal for small and medium-sized control rooms.
- Surround Channels: Perfect for immersive sound (Auro 3D, Dolby Atmos, DTS-X).
Technical Specifications That Speak for Themselves
Impressive Technical Data
- Drivers:
- HF: ATC 1”/25mm soft dome with dual suspension (SH25-76S 6 Ohm)
- LF: ATC 6”/150mm Super Linear technology with 75mm/3” voice coil
- Amplitude Linearity (±2dB): 80Hz – 20kHz
- Frequency Response at -6dB Drop-off: 55Hz – 25kHz
- Horizontal Dispersion: ±80°, consistent
- Vertical Dispersion: ±10°, consistent
- Maximum Continuous SPL Level (1 meter): 108dB
- Crossover Frequency: 2.1kHz
- Input Connectors: male XLR
- Input Sensitivity: 1V
- Input Sensitivity Adjustment: -12dB (1V – 4V)
- Input Impedance: balanced > 10kΩ
- Amplifier Output: Bass 200W, High 50W
- Overload Protection: Active FET-based gain reduction system
- Front Panel Indicators: power indicator, gain reduction warning
- Dimensions (HxWxD): 450 x 250 x 392mm (17.72˝ x 9.84˝ x 15.43˝)
- Weight: 23.4kg
What's Included in the Box?
- ATC Loudspeakers SCM20ASL Pro Mk2
- Power cable
- User manual
- Warranty card
Conclusion: Why You Should Choose the ATC SCM20ASL Pro Mk2
The ATC SCM20ASL Pro Mk2 is a studio monitor that offers exceptional sound quality, versatile applications, and reliability. With advanced technology and precise craftsmanship, it meets the expectations of even the most demanding users.
Shipment
Product delivery details ATC SCM20ASL Pro Mk2 - studio monitor
Shipment from Warsaw, Poland.
Delivery to
If you wish to see more accurate shipping methods available in your location, fill the fields above.
Ask question
Ask question about product
Product faq
ATC SCM20ASL Pro Mk2 - studio monitor - Frequently asked questions.
What are the main features of the ATC SCM20ASL Pro Mk2?
The ATC SCM20ASL Pro Mk2 is a 2-way studio monitor with a 150mm/6” CLD Mid/Bass driver and a 25mm/1” tweeter with dual suspension, and a MOSFET Class A/B amplifier with 200W/50W output power.
What applications is the ATC SCM20ASL Pro Mk2 best suited for?
The ATC SCM20ASL Pro Mk2 is ideal for near-field monitoring, LCR monitoring in small to medium control rooms, and as surround channels in immersive sound systems.
What are the main technical specifications of the ATC SCM20ASL Pro Mk2?
The monitor offers a frequency range of 55Hz – 25kHz, a maximum SPL level of 108dB, a crossover frequency of 2.1kHz, male XLR inputs, an input sensitivity of 1V, and a balanced input impedance of > 10kΩ.
What drivers are used in the ATC SCM20ASL Pro Mk2?
The monitor uses an HF driver: ATC 1”/25mm soft dome with dual suspension, and an LF driver: ATC 6”/150mm in Super Linear technology with a 75mm/3” voice coil.
What are the dimensions and weight of the ATC SCM20ASL Pro Mk2?
The monitor's dimensions are 450 x 250 x 392mm, and it weighs 23.4kg.
What input connectors does the ATC SCM20ASL Pro Mk2 have?
The monitor has male XLR input connectors.
What is included in the ATC SCM20ASL Pro Mk2 package?
The package includes the ATC SCM20ASL Pro Mk2 monitor, a power cable, a user manual, and a warranty card.
Why should you choose the ATC SCM20ASL Pro Mk2?
The ATC SCM20ASL Pro Mk2 offers exceptional sound quality, versatile applications, and reliability, meeting the expectations of even the most demanding users.
