QSC E110-BK - two-way loudspeaker
QSC E110-BK - two-way loudspeaker
Limited availability
30 days refund policy
Safe shopping
Warranty
Ask for price
Product attributes
Model :
E110-BK
SKU :
SUP_em1473
Warranty :
2 years
Producent :
QSC
Bluetooth :
NO
Power Amp :
300 W
HF Driver Size :
2.5"
LF Driver Size :
10"
Color :
Czarny
Powered :
pasive
Horizontal Coverage Angle: :
85
Vertical coverage angle :
55
Enclosure material :
sklejka 15mm
Frequency response From (Hz) :
50
Frequency response to (Hz) :
20000
Product Description
Details

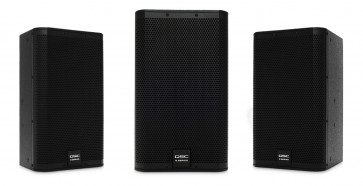

The E110 is a compact, two-way loudspeaker with a 10-inch, die cast frame woofer with a 2.5-inch voice-coil housed in a multi-purpose enclosure that’s at home in stage monitor or main PA deployment. It incorporates QSC’s DMT (Directivity Matched Transition) design with a wide 85° coverage. When used as a stage monitor, the E110 is angled up at a 55° angle allowing it to be placed near the performer when used on a crowded stage.
E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Features
- High output, professional quality sound with 300 W continuous power
- E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
- - For PLD/CXD visit Amplifier Navigator Software
- - For GXD visit the GXD Firmware Updater
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Suitable for main PA and stage monitor
- Available U-Style Yoke and M8 rigging kit for permanent installation
- Dual angle pole socket
Model E110
Configuration 1 x 10-inch, 2-way, non-powered
Frequency Response (-6 dB) 68Hz – 20kHz
Frequency Range (-10 dB) 50Hz - 20kHz
Power capacity²: continuous/peak 300 W / 1200 W
Sensitivity 95 dB, 1 W @ 1 m
Coverage Angle 85° conical DMT
Output1 (Peak SPL @ 1m) 126 dB
Drivers
LF 254 mm (10-inch) driver with 64 mm (2.5-inch) voice coil;
HF 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver
Nominal Impedance 8Ω
Cross-over Full-range only, 1.8 kHz
Input Connections 2 x NL4, 1 x barrier strip
Enclosure Multi-angle plywood, black texture paint finish. One top- mounted handle. Perforated, powder-coated steel grille with foam lining.
Mounting and suspension 9 x M8 suspension points, dual angle, 35 mm pole-socket
Net weight 20kg / 44lbs
Shipping weight 23kg / 50lbs
Dimensions(WxHxD) 330 x 560 x 330 mm 13 x 22 x 13-inch
