‌Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

Features

• Compact bodypack transmitter, unobstrusive clip-on microphone
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

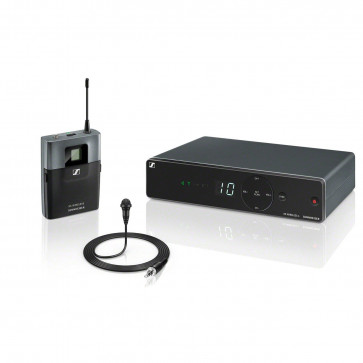

What's in the box?

• 1 receiver EM-XSW 1

• 1 lavalier microphone ME 2-2

• 1 bodypack transmitter SK-XSW

• 1 power supply NT 12-5 CW

• 2 AA batteries


Technical Data

Receivers

• Dimensions approx. 200 x 42 x 127 mm

• Weight approx. 340g

• Power supply 12 V DC nom. / 300 mA

• AF frequency response 50 to 16,000 Hz (–3 dB)


Transmitter

• Dimensions approx. 71 x 96 x 28 mm

• Weight approx. 95g

• Power supply 2 AA size batteries, 1.5 V

• Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps


Microphone condenser

• THD, total harmonic distortion ≤ 0.9%

• Pick-up pattern omni-directional

• Signal-to-noise ratio ≥ 103 dBA

• RF output power 10 mW

• Switching bandwidth up to 24 MHz

• Operating time approx. 10 hrs

• Modulation wideband FM

• Output voltage '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

• Housing rugged ABS housing

• Diversity reception antenna switching diversity via internal antennas

• Frequency 8 frequency banks, each with up to 10 factory-preset channels

• Frequency range A: 548-572 MHz,
• GB: 606-630 MHz

• B: 614-638 MHz, C: 766-790 MHz

• D: 794-806 MHz

• E: 821-832 MHz, 863-865 MHz

• K: 925-937.5 MHz

• Sensitivity < 3 μV at 52 dB(A)rms S/N

• SPL for peak deviation 130 dB

• Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

• Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)

• Input sensitivity 1.5 mV / Pa

• Audio adjustment range 45 dB, adjustable in 5-dB steps

• Line / Mic level 20 dB, switchable

• Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C

• Receiver Principle double superheterodyne
