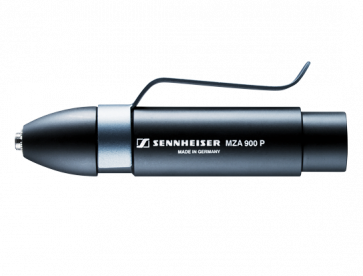

Sennheiser MZA 900 P - Phantom power adaptor
Sennheiser MZA 900 P - Phantom power adaptor
Product available: 2 pcs
Main warehouse
Stationary shop
Buy now and we will send the product today
Place order within
best price
30 days refund policy
Safe shopping
Warranty
Free InPost return
EUR186.93
Product attributes
Model :
MZA 900 P
SKU :
SUP_em383
Warranty :
2 years
Producent :
Sennheiser
Product Description
Details
The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 - 52 V phantom powering (P12 - P48). The connected microphone is supplied via the adaptor.
The phantom power adaptor is available in two different versions:
- MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless)
- MZA 900 P-4 with lockable 3-pin special socket
The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.
The MZA 900 P can also be used as a cable tester for XLR microphone cables.
Features
- Robust metall chassis
- Switchable gain (0/-12dB)
- Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)
- Two-colour control LED (phantom power, audio peak)
- Input 3,5mm stereo jack socket, lockable
- Output XLR-3M
Technical Data
0/-12 dB
Gain 0/-12 dB
0/-12 dB
1,8V (P48), 0,6V (P12) @ 0dB gain
Output voltage 1,8V (P48), 0,6V (P12) @ 0dB gain
1,8V (P48), 0,6V (P12) @ 0dB gain
1,8V (P48), 0,6V (P12) @ 0dB gain
20 - 20000 Hz (-1 dB)
P12 - P48, 10 - 52V, 2,6 - 2,8mA
Phantom powering P12 - P48, 10 - 52V, 2,6 - 2,8mA
P12 - P48, 10 - 52V, 2,6 - 2,8mA
P12 - P48, 10 - 52V, 2,6 - 2,8mA
100 Ω
Output impedance 100 Ω
100 Ω
100 Ω
Dimensions Ø 19/22 mm, L 100 mm
Frequency response 20 - 20000 Hz (-1 dB)
Weight 60 g
Nominal impedance 100 Ω
Min. terminating impedance 5kOhms (P12 - P48) @ 0dB gain; 2kOhms (P12 - P48) @ -12dB gain
Phantom powering P12 - P48, 10 - 52V, 2,6 - 2,8mA
Operating temperature -20.....+60 °C
Gain 0/-12 dB
Output voltage 1,8V (P48), 0,6V (P12) @ 0dB gain
