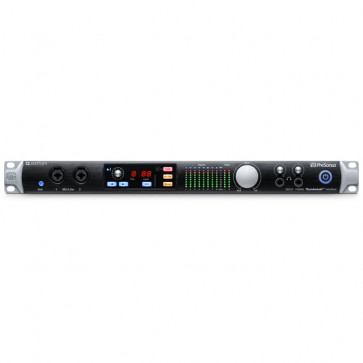

PreSonus Quantum - interface Audio
PreSonus Quantum
Limited availability
30 days refund policy
Safe shopping
Warranty
Ask for price
Product attributes
Model :
Quantum
SKU :
SUP_nj1355
Warranty :
2 years
Manufacturer :
PreSonus
Number of Mic Inputs :
8
Phantom power :
YES
Recording / Playback Channels :
26x32
Number of Line Inputs :
8
Number of Line Outs :
10
Headphone Outs :
2
Number of ADAT Connectors :
2
Ethernet :
NO
MIDI interface :
YES
Word Clock :
YES
Max. sample rate (kHz) :
192 kHz
Max. resolution in bit :
24 bit
USB Bus-Powered :
NO
Incl. power supply :
YES
Connector Type :
Thunderbolt 2
Product Description
Details
- 26 Inputs
- 32 Outputs
- Very low latency <1 ms
- Audiophile 24 bit digital converter with 120 dB dynamic response
- Up to 192 kHz sampling rate
- Inputs: 2x XLR Combo (Mic / Line / Instr.), 6x XLR Combo (Mic / Line)
- 8 XMAX Class A microphone preamplifier (ON <-131 dB, THD + N <0.005%)
- Perfect integration in DAW "Studio One 3" (including gain control)
- DC-coupled line outputs allow driving (CV / gate) of analog components (synths, thomann filters, etc.) out of DAW
- Remote control and programmable via Mac, PC, iPad and Tablet (via "UC Surface")
- Included control software / app "UC-Surface": Setting and storing pre-gain (gain)
- 48 V Phantom Power on / off
- Realtime Analyser
- Front-panel talkback microphone with push-button
- Next / Prev button plus gain control
- 48 V button (phantom power) with status light
- Dim / Mute and Mono buttons with status light
- 8 LED chains (8-segment plus 48 V-LED) for the analog inputs
- 2 LED chains (8-segment) for the main output (L / R)
- 8 Balanced DA outputs (each TRS jack 6.3 mm)
- Separate balanced main output (L / R 2 TRS jack 6.3 mm) with large front-side volume control
- 2 Headphone output (stereo headphone 6.3 mm) with 2 separate volume control knobs
- 16x16 ADAT I / O (48 kHz) or 8x8 Dual SMUX I / O (96 kHz)
- S / PDIF I / O (coaxial)
- Word Clock I / O (BNC)
- MIDI I / O (5-pin DIN)
- Up to 4 Quantum can be cascaded via Thunderbolt
- Power supply: external power supply (12 VDC)
- Dimensions (W x D x H): 483 x 140 x 45 mm
- Weight: 2.3 kg
- Incl. Control software / app "UC-Surface" (to download) and DAW-software "Studio One 3 Artist" (download)
System requirements:
- Thunderbolt 1 or 2 port (motherboard of the computer must support Thunderbolt)
- Internet connection (to register and download software)
- Monitor resolution: 1366 x 768
- 30 GB free disk space
- Hard disk with 7200 RPM or faster (strongly recommended)
- OS X 10.11.6 or later
- Windows 10 64 bit
- Intel Core i5 or faster, 4 GB of RAM (8 GB or more recommended)
- Mobile (UC Surface): iOS 9.3 or later
- Android 5.0 (Lollipop) or later
