B·H series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126,5 dB for the 15” cabinet), while delivering the most accurate sound reproduction.

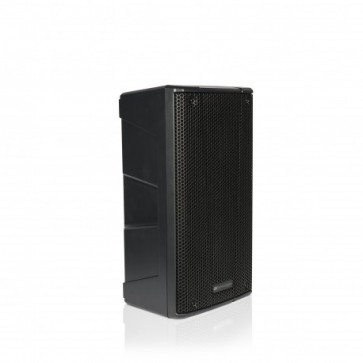

The new B-HYPE 10 is a versatile active speaker. It is equipped with one 1” compression driver (1” voice coil), and one 10” woofer (1.5” voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.

The featherweight cabinets (from 14 to 38 lbs) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1xside and 1 on top-) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dBTechnologies Subs.

Technical Data

• Speaker Type2-Way Active Speaker

• Acoustical data

• Usable Bandwidth [-10dB]55 - 20.000 Hz

• Frequency Response [-6 dB]62 - 19.600 Hz

• Max SPL121 dB

• Type HFCompression Driver

• HF voice coil 1 "

• LF10 "

• LF voice coil 1.5 "

• Crossover Frequency 2300 Hz (24 dB/oct.)

• Horizontal Dispersion asymmetrical 85° up / 120°down

• Vertical Dispersion 85° (+25/ -60°)


Amplifier

• Amp TechnologyCustom Made

• Amp ClassClass D - Passice cooling (convection)

• Power Peak 260 W


Processor

• ControllerDSP 28/56 bit- 48 kHz

• LimiterPeak, RMS, Thermal

• Controls Volume, Audio Input Sensitivity, DSP Preset


Input

Main Connection VDE

• Signal Input Balanced 1xCombo IN (MIC/LINE)

• SIGNAL Out (Balanced) 1xXLR OUT (LINK)


Mechanics

• HousingPolypropylene

• Grille Full Metal Grille

• Handles 3 (2 on side 1 on top)

• Pole Mount 36 mm

• Width295 mm (11.61 in)

• Height544 mm (21.42 in)

• Depth283 mm (11.14 in)

• Weight9 kg (19.84 lbs)

• Angles UpDouble wedge angle 45°
