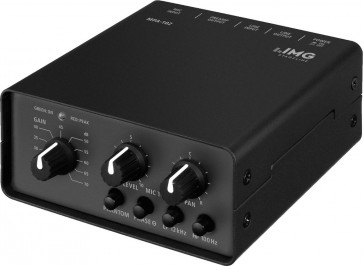

IMG STAGELINE MPA-102
1-channel low-noise microphone preamplifier
Product available: 1 pcs
Main warehouse
Stationary shop
Buy now and we will send the product today
Place order within
30 days refund policy
Safe shopping
Warranty
Regular Price: EUR127.92
Special Price EUR94.69
Lowest price 30 days before the promotion starts: EUR94.69
Product attributes
Model :
MPA-102
SKU :
SUP_am1847
Warranty :
3 years
Manufacturer :
Channels :
1
Number of microphone Inputs :
1
Instrument Input :
NO
Compressor/Limiter :
NO
Equalizer :
NO
Phantom power :
YES
External effect loops :
NO
Digitale outputs :
NO
Headphone connection :
NO
Product Description
Details
Click to download attachment 1
Warranty: 3 years
1-channel low-noise microphone preamplifier,
for mains operation or battery operation.
- 1 microphone input, XLR, bal.
- Gain control, 11 steps, 20-70 dB
- LED green/red for indicating operation/peak
- Phantom power +24 V, can be switched on additionally
- Switchable microphone phase
- Low cut: 100 Hz, high cut: 12 kHz, 12 dB/oct., switchable
- 1 preamplifier output
- 1 stereo line input
- 1 stereo line output
- Level control and pan pot control for mixing the microphone signal to the stereo line channel
tools4music 02/2011
"A high-quality preamplifier."
Type: microphone preamplifier
Frequency range: 20-20,000 Hz
Control range: -
Control frequencies: -
Input signal: -
Input sensitivity: 0.3-150 mV,
switchable
Input impedance: 2.2 kΩ (mic)
10 kΩ (line)
Output signal: 1-12 V (line, bal.)
1-6 V (line, stereo)
Output impedance: 100 Ω
Gain: 20-70 dB (mic)
0 db (line)
Phantom power: -
Compression: -
Gate ratio: -
Crossover frequency: 100 Hz/-3 dB, 12 dB/oct. (low cut)
12 kHz/-3 dB, 12 dB/oct. (high cut)
High-pass filter: -
Low cut: 100 Hz/-3 dB, 12 dB/oct.
Transmission ratio: -
S/N ratio: > 66 dB, unweighted (mic)
80 dB, unweighted (line)
Channel separation: -
THD: < 0.01%
Admiss. ambient temp.: 0-40 °C
Power supply: via supplied plug-in PSU;
alternatively 4 x 9 V battery
Dimensions: 116 x 55 x 125 mm
Weight: 980 g
Inputs: 1 x XLR (mic)
1 x RCA L/R (line)
Outputs: 1 x XLR (preamp)
1 x RCA L/R (line)
Other features: -
Click to download attachment 1
Warranty: 3 years
